Starting in Xenium Explorer v4.1, the selected regions functionality has moved to the Annotations layer, enabling greater flexibility for integrating pathology annotations with Xenium In Situ gene and protein expression data and post-Xenium image data.

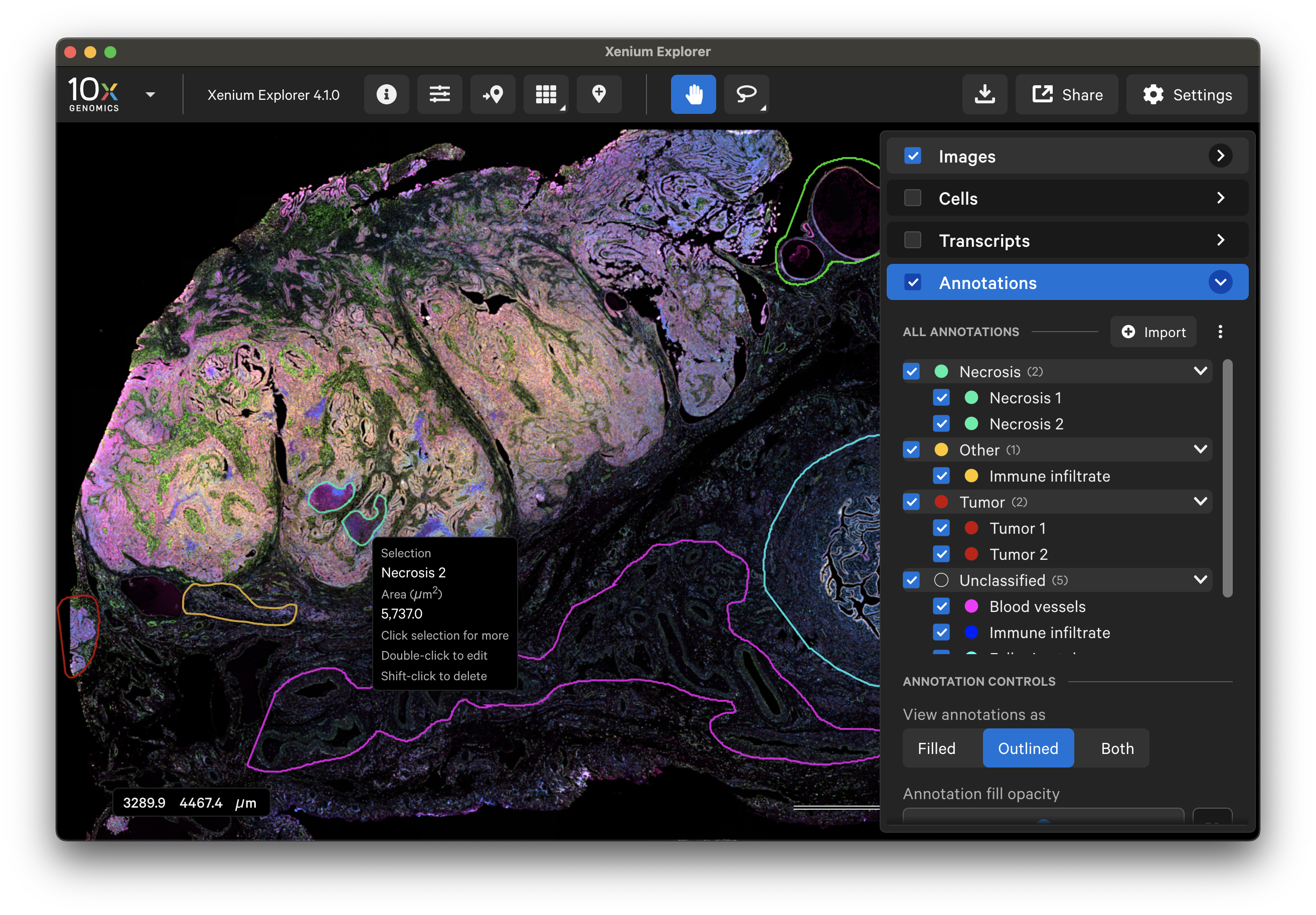

The Annotations layer lists annotated Regions of Interest (ROIs), selected cells, and imported annotations from third-party tools. Tools are provided to create and edit annotations, as well as export information about selected regions.

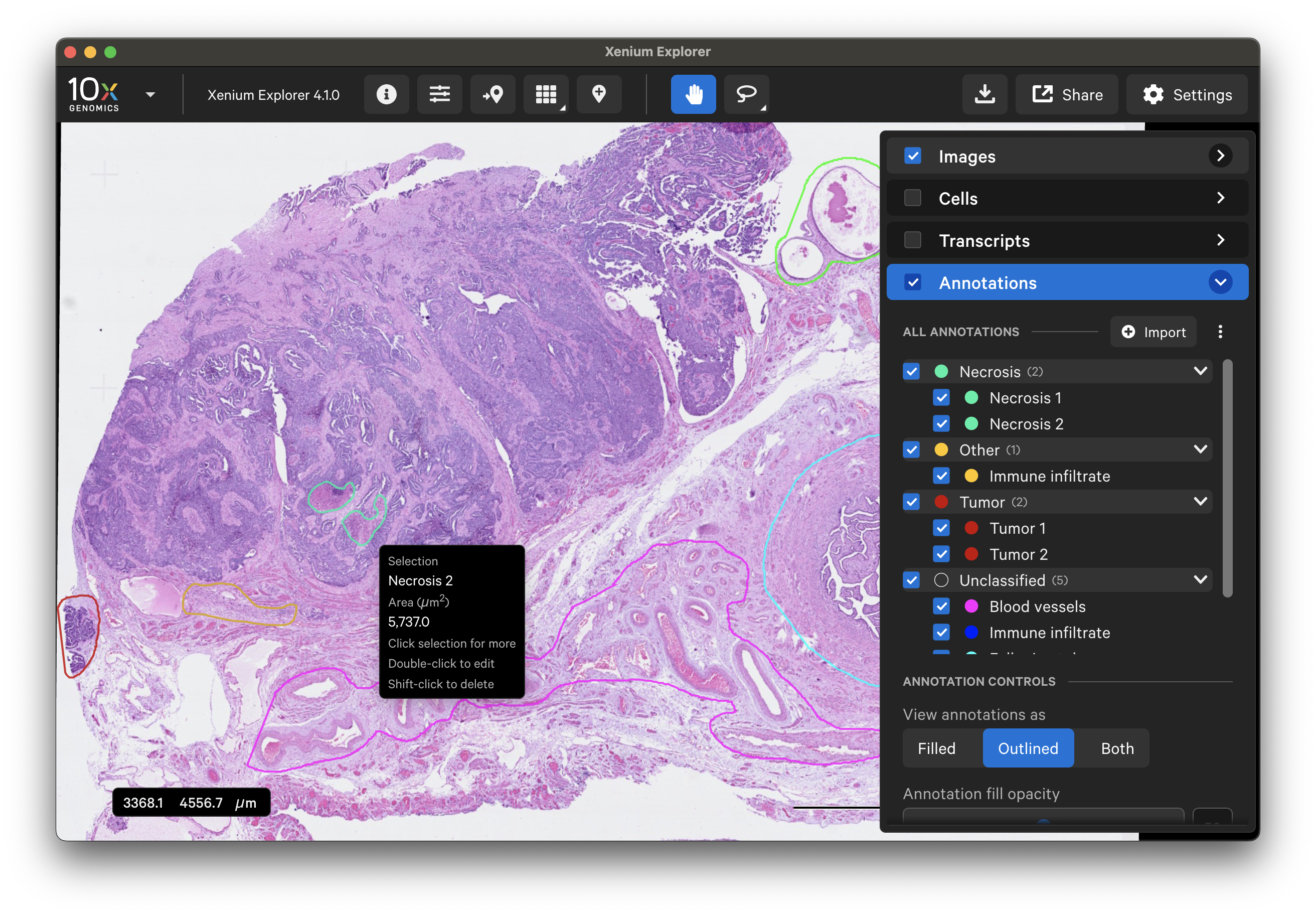

Here is an example of a human ovary dataset with pathology annotations displayed over either the Xenium In Situ morphology image or post-Xenium H&E image.

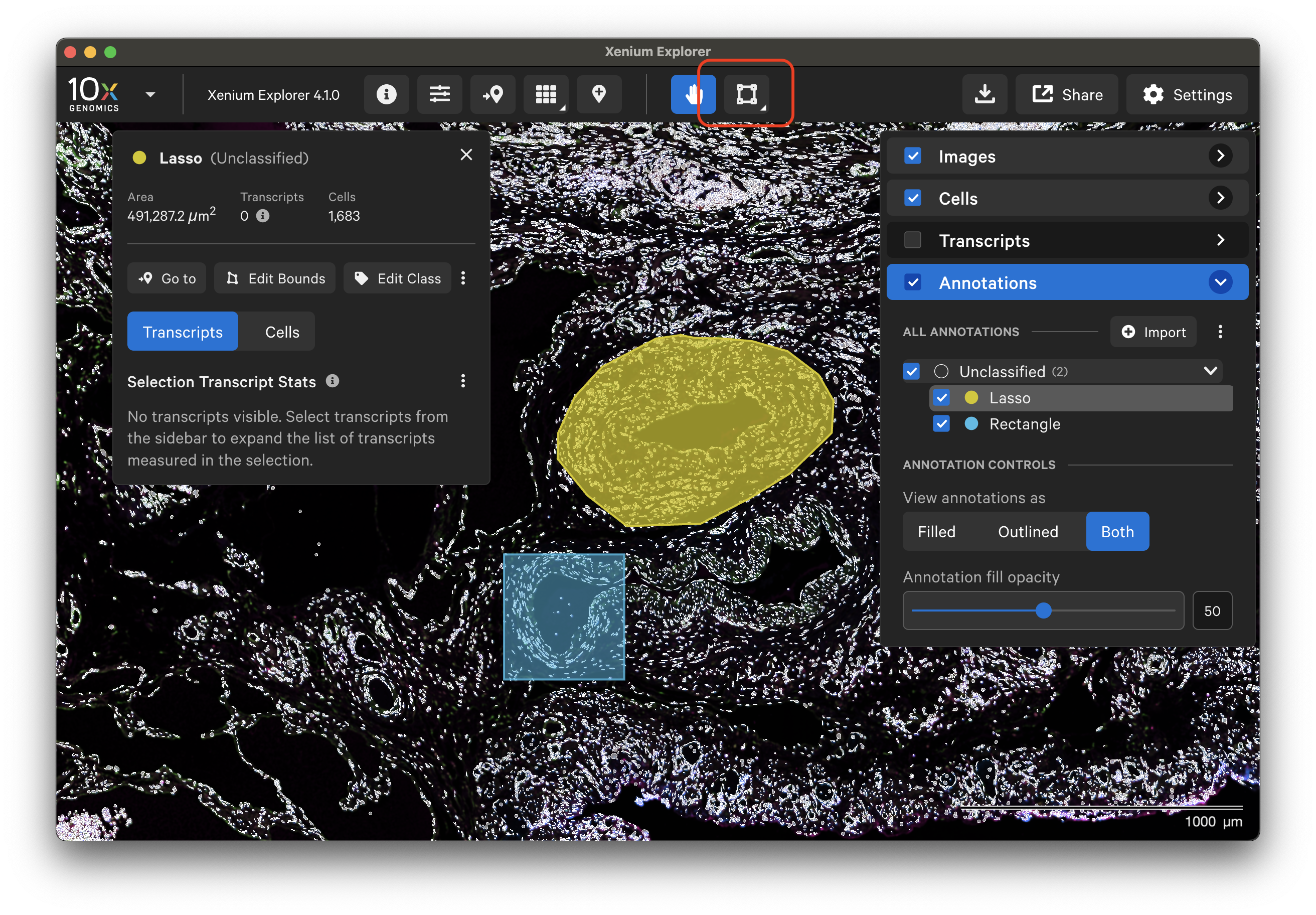

The lasso tool allows you to create multiple ROI annotations with both the rectangle and freehand lassos. You can also make overlapping annotations. To draw a new annotation, click the lasso tool.

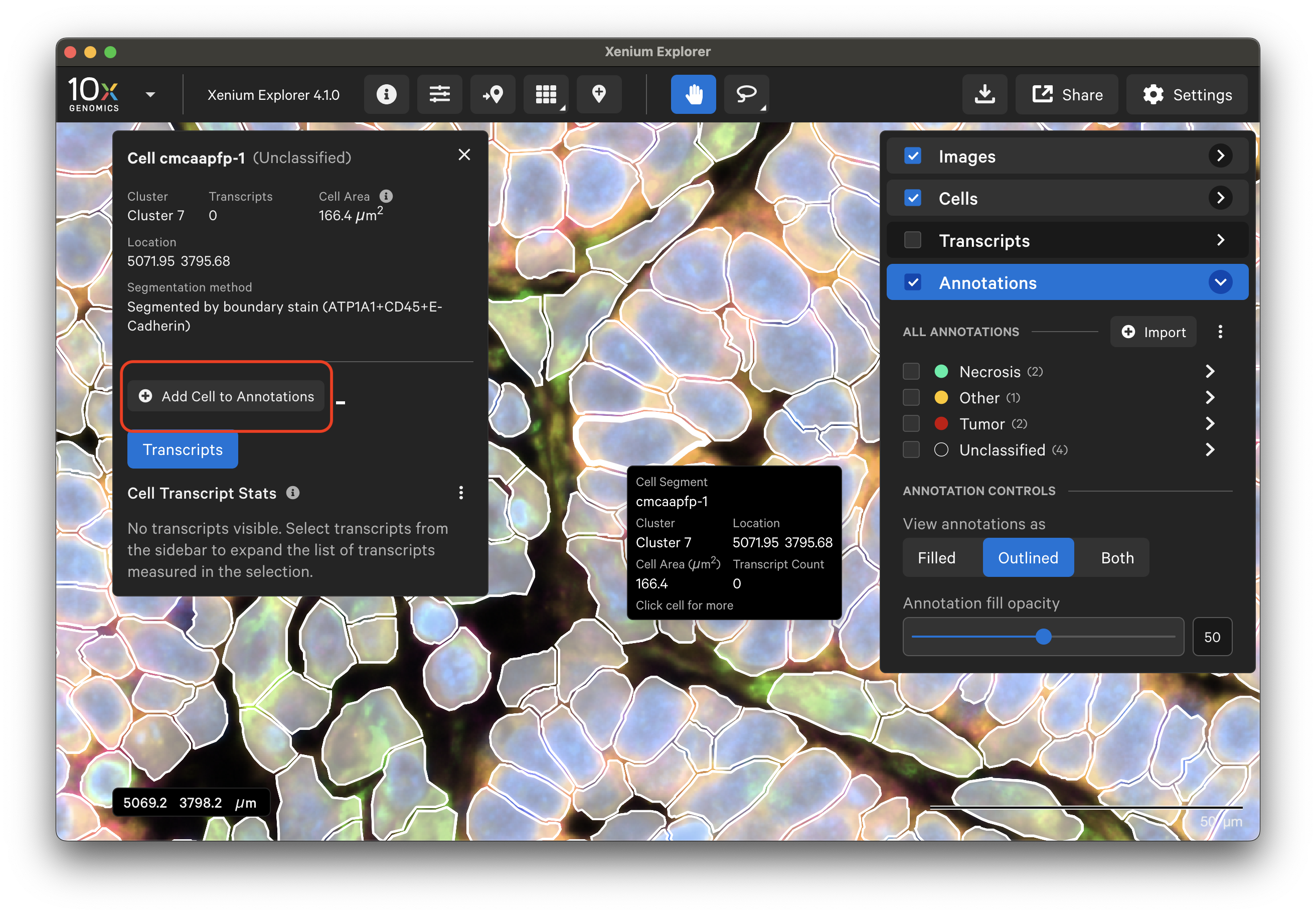

To select specific cells, make sure tooltips are turned on (Settings > Show Tooltips). View cells (outlined or filled) and click on the cell of interest. It can be added to the Annotations layer by clicking Add Cell to Annotations.

• If you click on a cell that is completely within an active ROI selection, the selection box will show cell statistics for the cell within the selection instead of adding a new cell ID to the list of Annotations.
• To add the cell as its own cell annotation, uncheck the box next to the selection it overlaps with in the Annotations layer, and reselect the cell.

Annotated ROIs and cells are both listed in the Annotations layer. Click on any annotation to switch between them. The Go to selection icon allows you to jump to a specific selection in the viewing area.

The following information is displayed for each annotated region (Cells and/or Transcripts layers must be checked to display this information):

† Transcript counts in selected ROIs are derived from transcript assignments by cell segmentation polygon boundaries, which are used in Xenium Explorer as approximations for visualization performance. Transcript counts in selected cells are derived from transcript assignments by cell segmentation masks in the cell-feature matrix.

‡ The cell IDs format was updated in output files generated by Xenium Onboard Analysis (XOA) v1.3 and later. Xenium Explorer v1.1 and later will display pre-v1.3 XOA data with the original integer format and v1.3+ XOA data with the new format. Please upgrade to the latest version of Xenium Explorer to view data from Xenium Onboard Analysis v1.3+ (also see release notes).

Starting in Xenium Explorer v4.1, there are two file formats for importing annotated region coordinates:

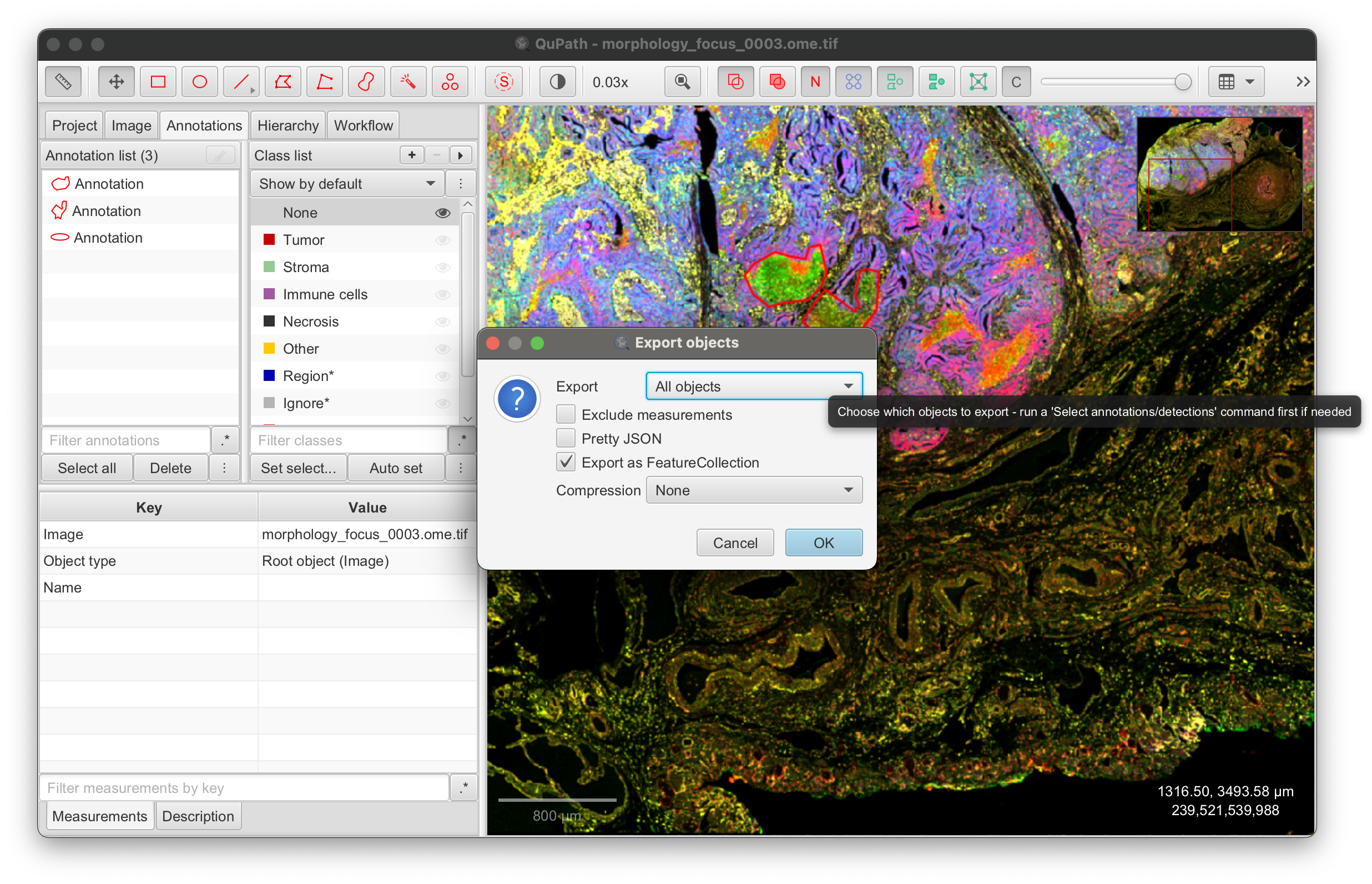

For example, you can export annotation polygons in GeoJSON format from QuPath and view them in Xenium Explorer. Refer to the QuPath export annotations documentation. After drawing annotations in QuPath, click File > Export objects as GeoJSON:

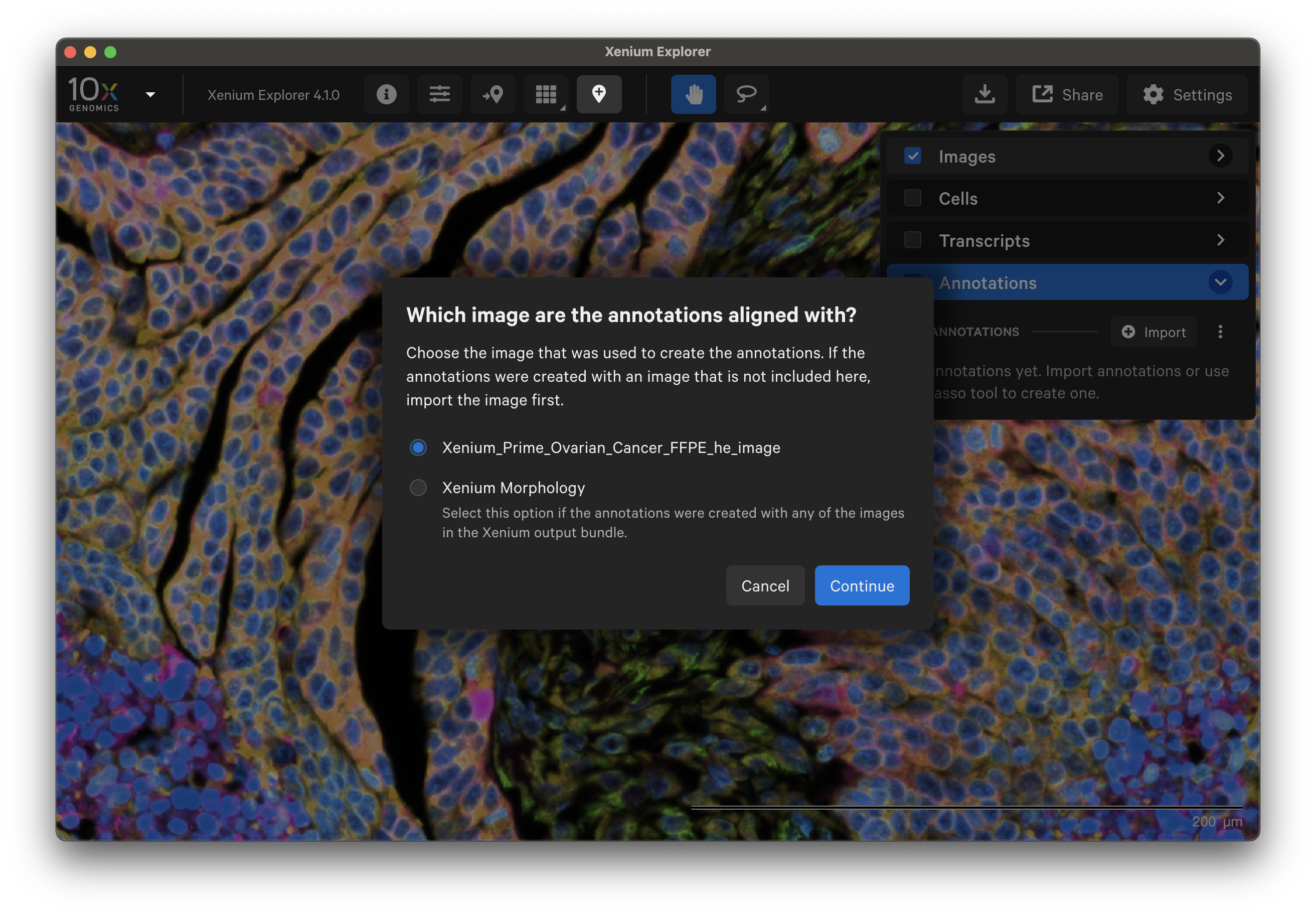

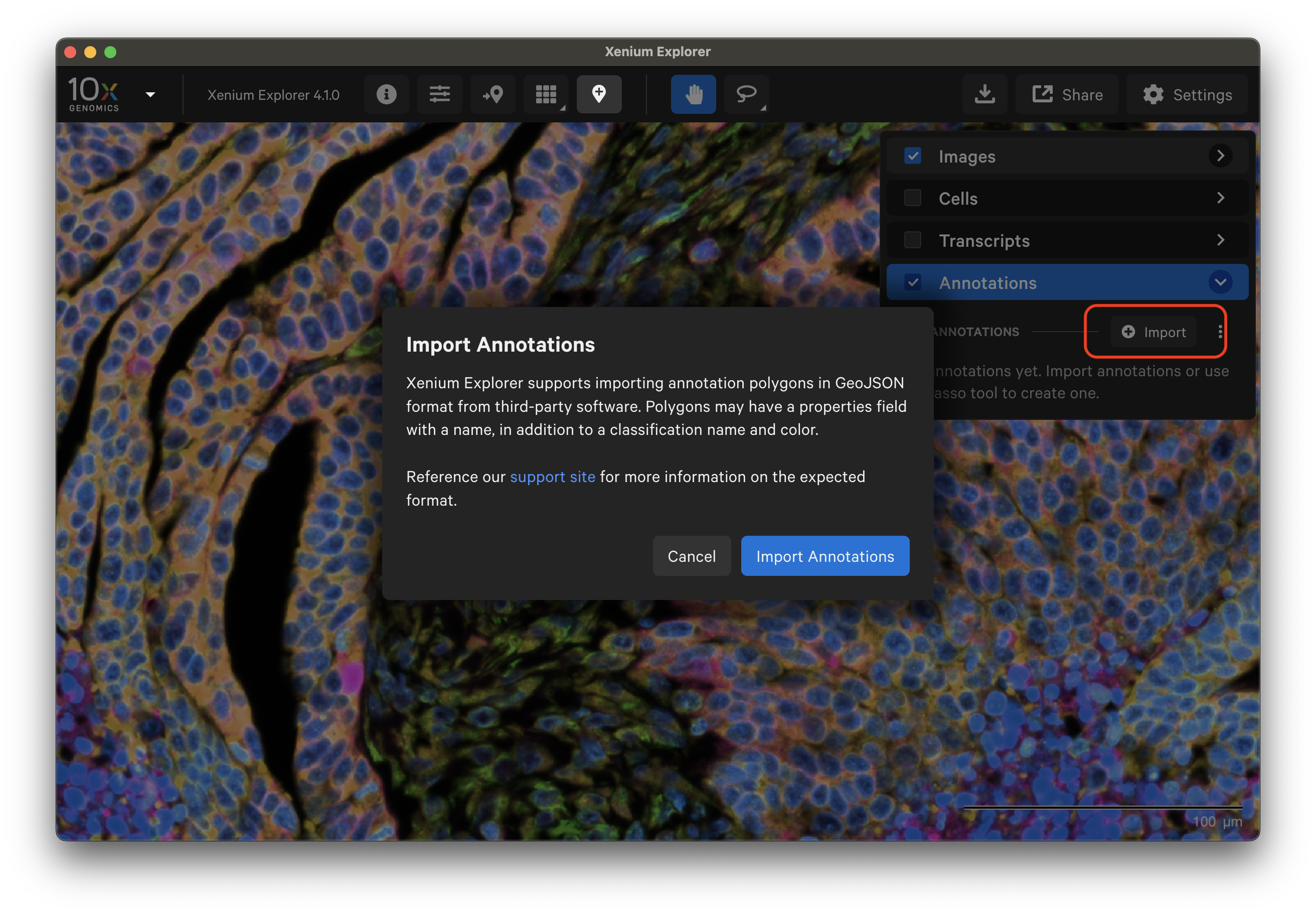

Starting in Xenium Explorer v4.1, click "Import" to import a GeoJSON file with annotation coordinates.

Ensure annotations were aligned to either the morphology or a post-Xenium image for correct alignment.

The polygon GeoJSON file should be exported as a FeatureCollection, with geometry "type": "Polygon" and "objectType": "annotation". The name of the classification field will be used for display in the Annotations layer of Xenium Explorer. The format should look similar to this example, shown below in QuPath's output format (the coordinates are truncated for brevity):

Copy
{
  "type": "FeatureCollection",
  "features": [
    {
      "type": "Feature",
      "id": "13a496e3-0f3e-4d6c-9898-45048b0374db",
      "geometry": {
        "type": "Polygon",
        "coordinates": [
          [
            [32798, 50889],
            [32798, 50932],
            [32798, 50974],
            ...
            [32841, 50591],
            [32841, 50633],
            [32841, 50804],
            [32841, 50846],
            [32798, 50889]
          ]
        ]
      },
      "properties": {
        "objectType": "annotation",
        "classification": {
          "name": "Tumor",
          "color": [204, 204, 51]
        }
      }
    },
    ...
  ]

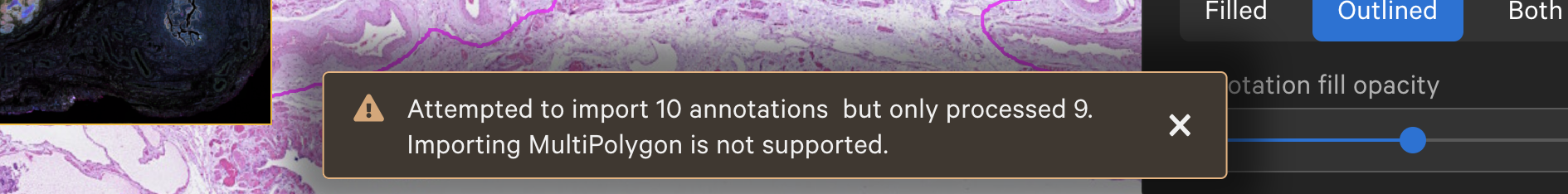

Files with malformed or empty GeoJSON files may result in partial or failed imports. If included in the GeoJSON file, Xenium Explorer will show a warning that n annotations failed to import. XE will skip these and load all correctly formatted polygons.

Troubleshooting format issues

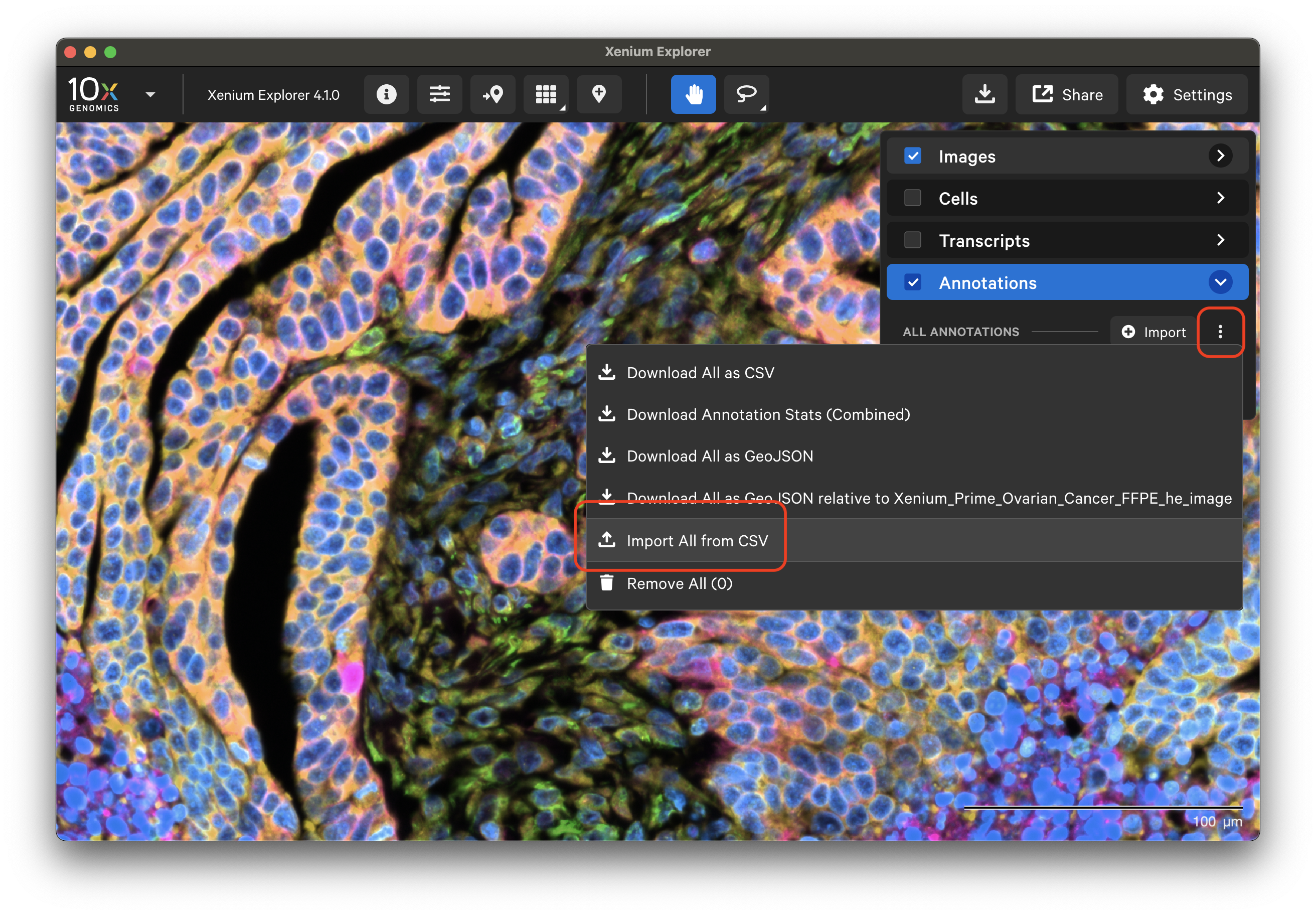

Starting in Xenium Explorer v4.1, select "Import All from CSV" to import a CSV file with the coordinates.

Note that prior to Xenium Explorer v4.0, downloaded selection CSV files with one selection had the header X,Y. The file must be edited to include a Selection column (Selection,X,Y). It should match the example shown here.

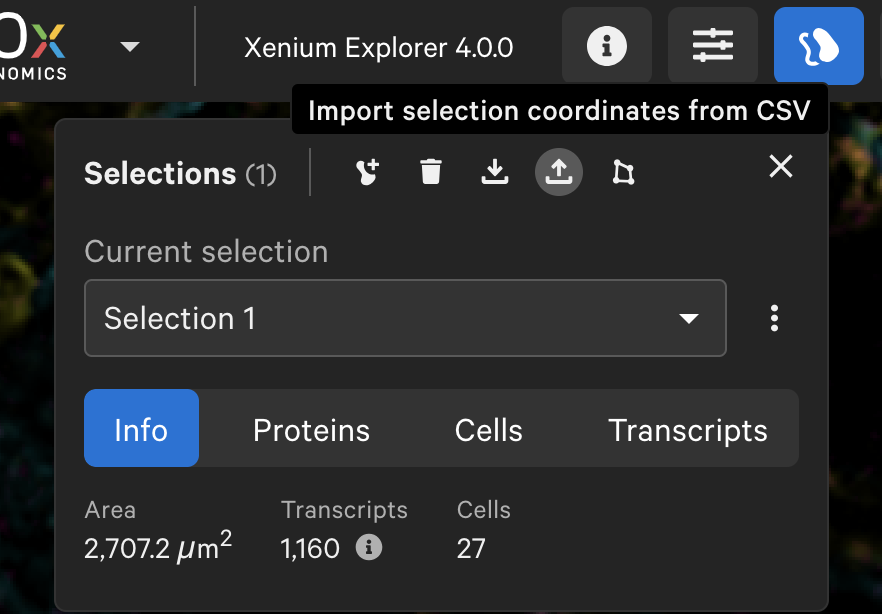

In Xenium Explorer v4.0, the import button was located in the Selections window.

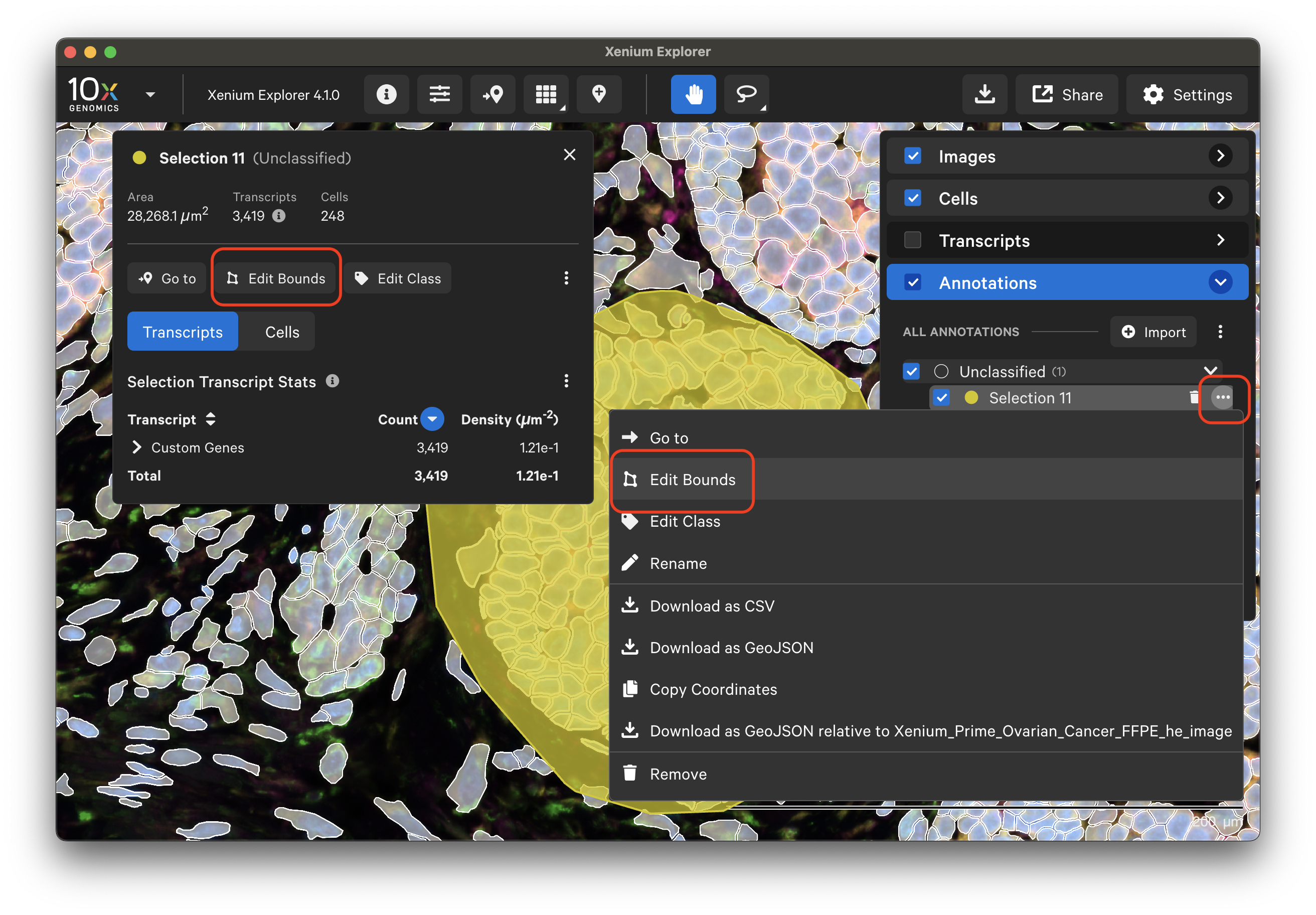

For any annotation shape, use any of the following options to edit it:

• Click on the annotation and click "Edit Bounds" from the Selection window
• Click on the annotation, click the three dots, and click "Edit Bounds"
• Double-click on the annotation shape

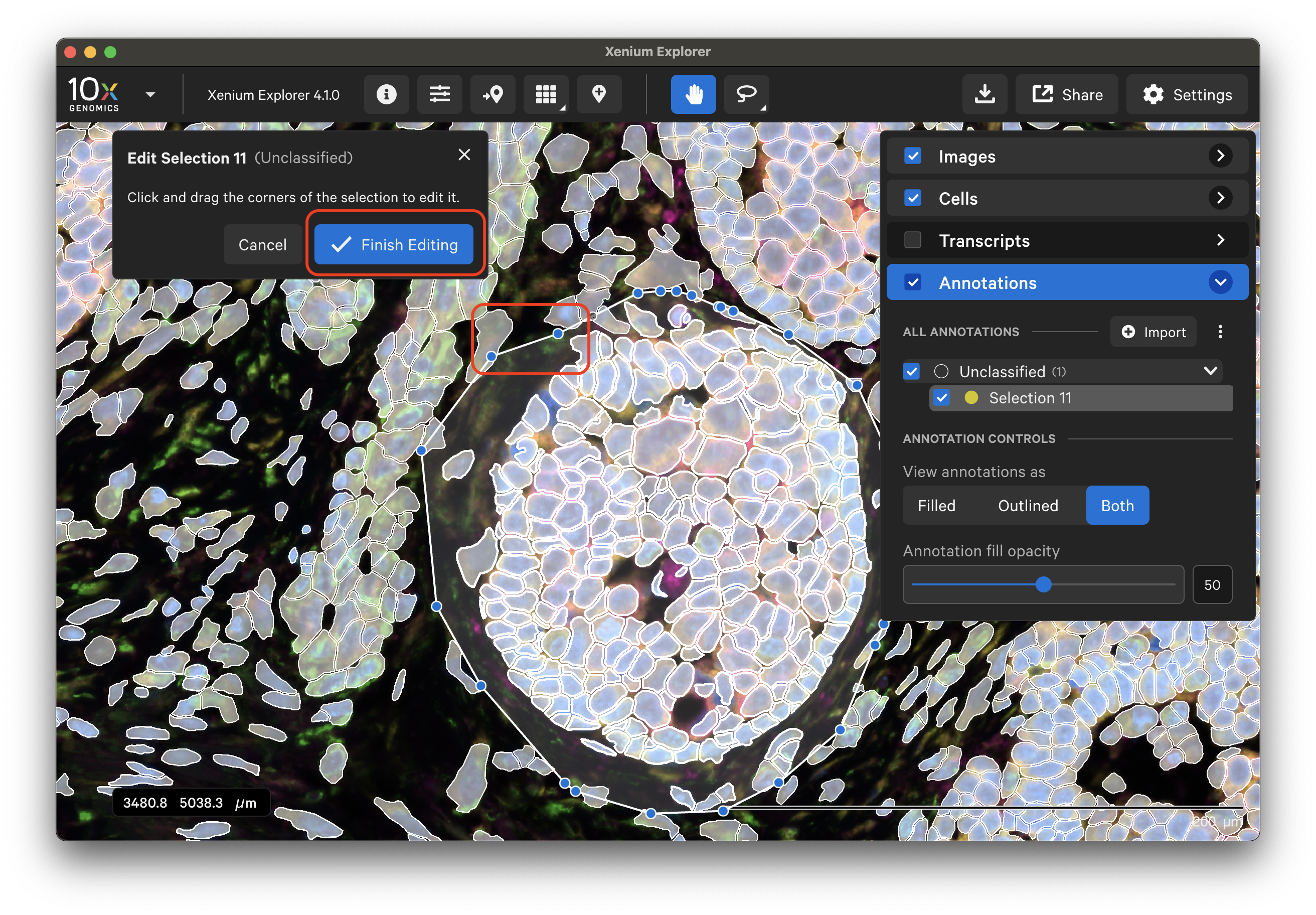

You can adjust the position of each point or move the entire annotation shape by clicking and dragging with your mouse. Click on a line to add a new point. Press the "shift" key and click on a point to remove it. Remember that cells must be completely contained in the selection to be counted for the selection stats.

When complete, click Finish Editing or double-click outside the selection shape. The Info, Transcripts, Cells, and Protein information will be updated to match the edited area.

Example (shown in Xenium Explorer v3.2, but main functionality is the same):

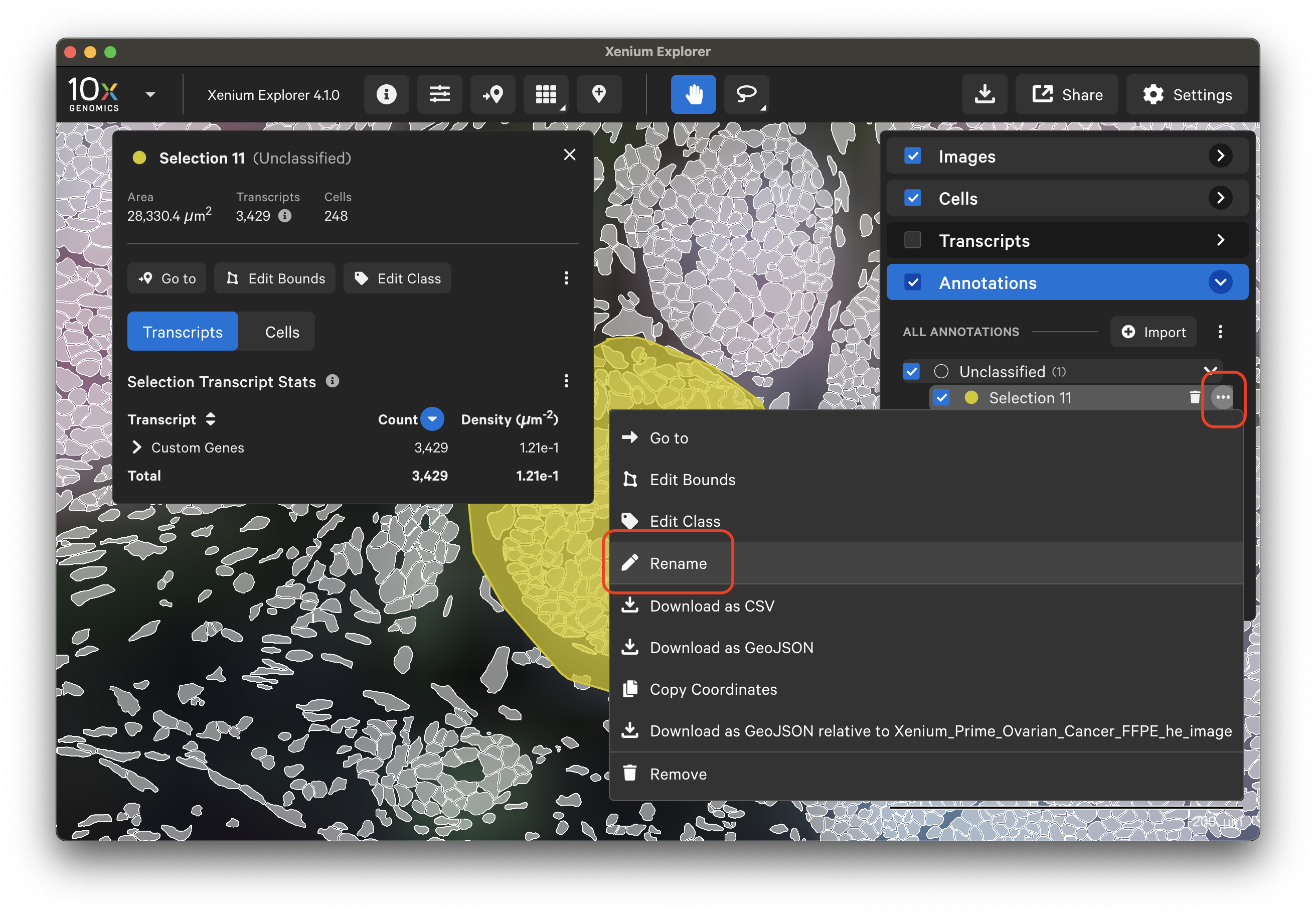

Annotated ROIs are automatically labeled and can be renamed. Selected cells are labeled by cell ID and cannot be renamed.

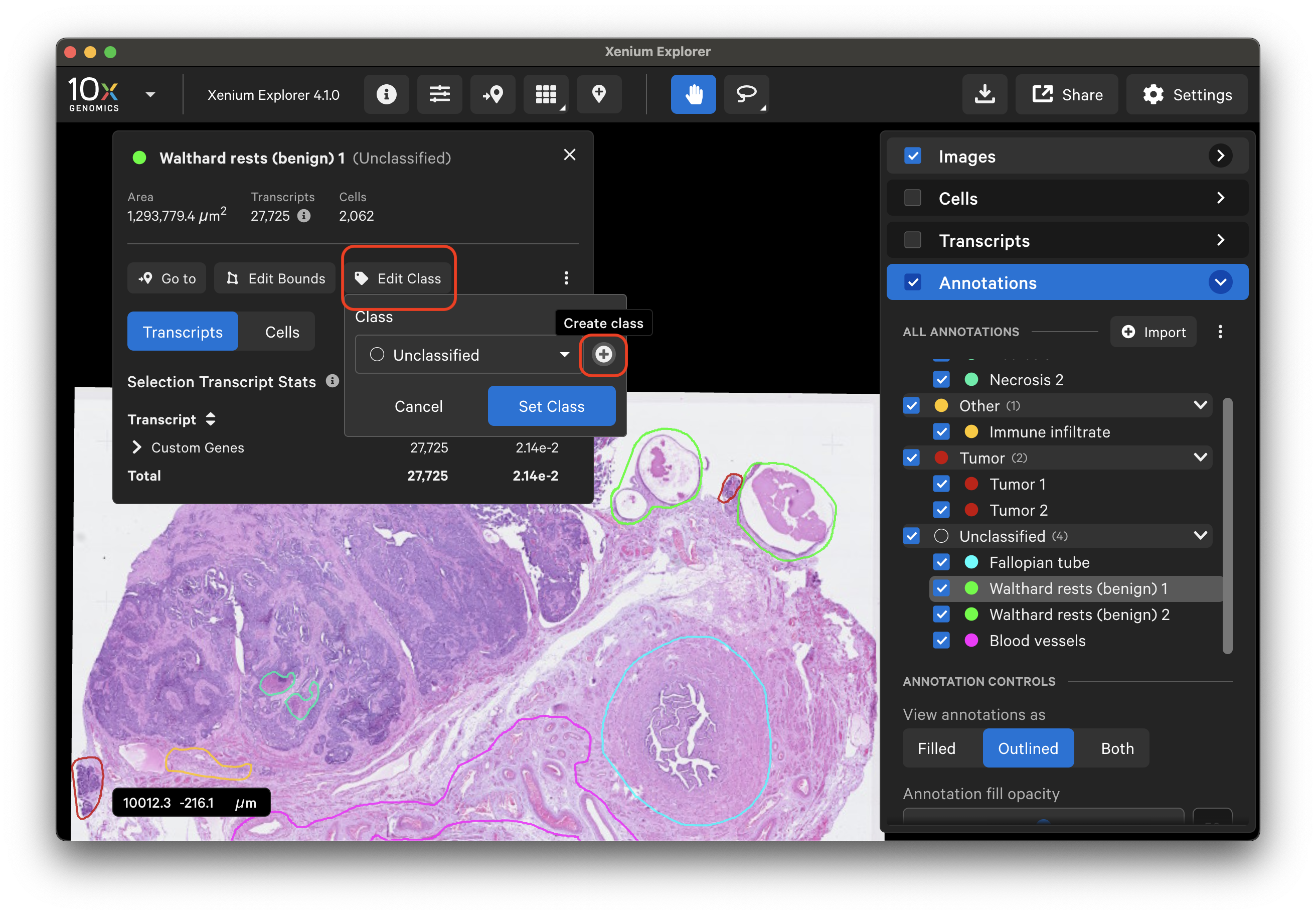

In Xenium Explorer v4.1, annotations can be grouped under classification labels (class). When first drawn, annotations are "Unclassified". Classes can be added and edited in XE. Annotation class labels from third-party tools can be imported with the GeoJSON file import method.

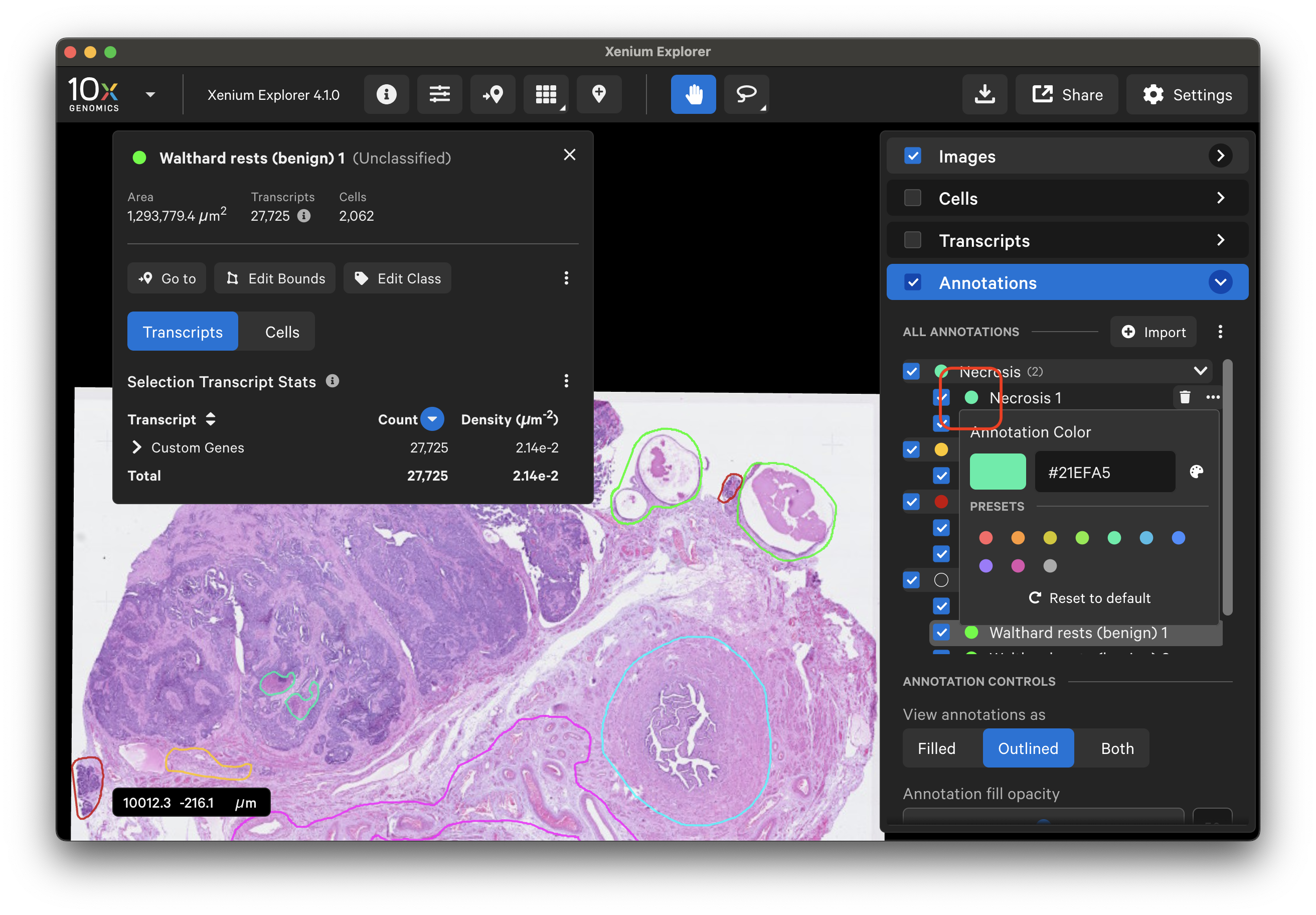

Each annotation's outline/fill color can be changed. Annotations within a class use the same outline/fill color, unless edited.

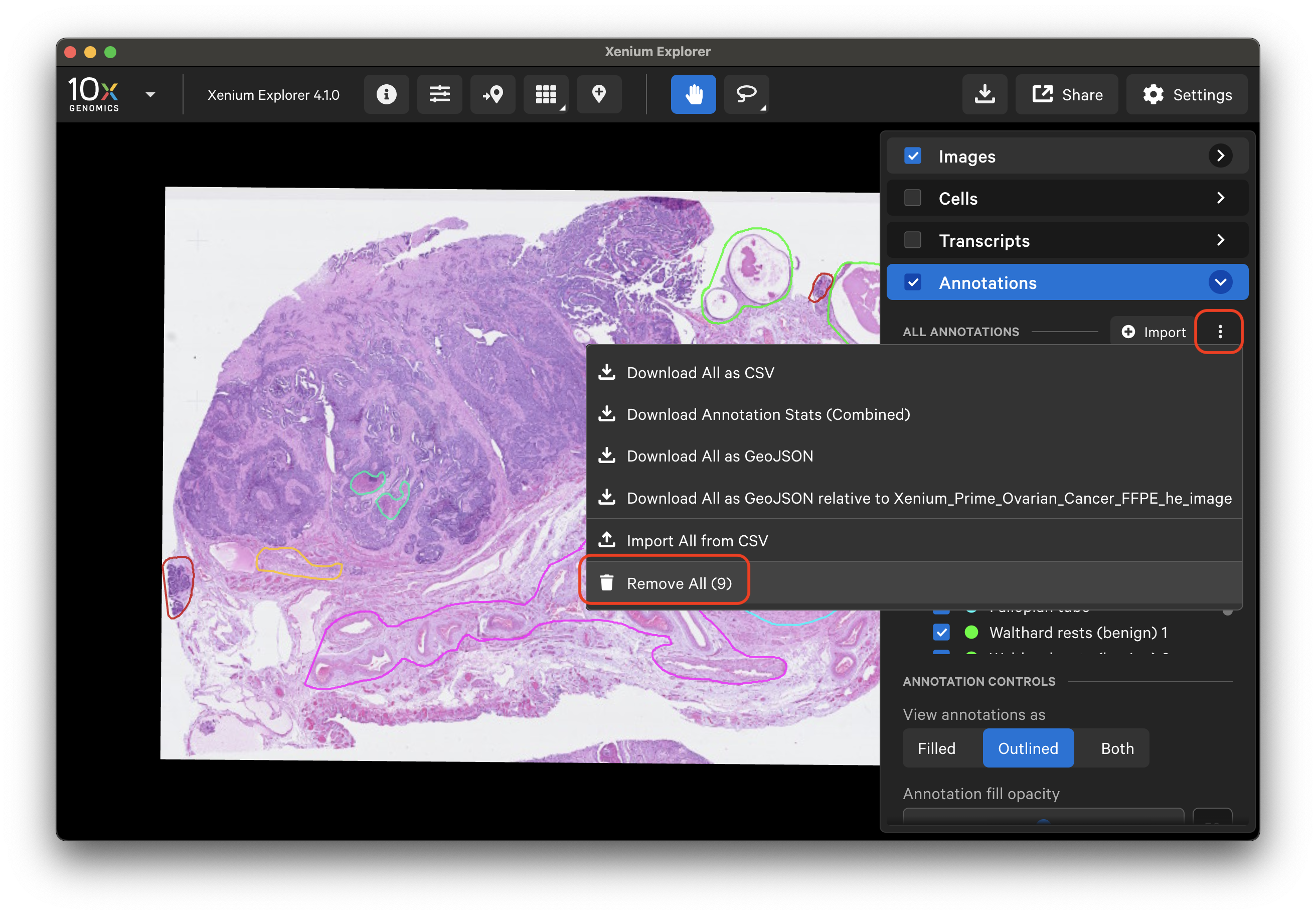

To remove all annotations, click the three dots next to the "Import" button and select "Remove All":

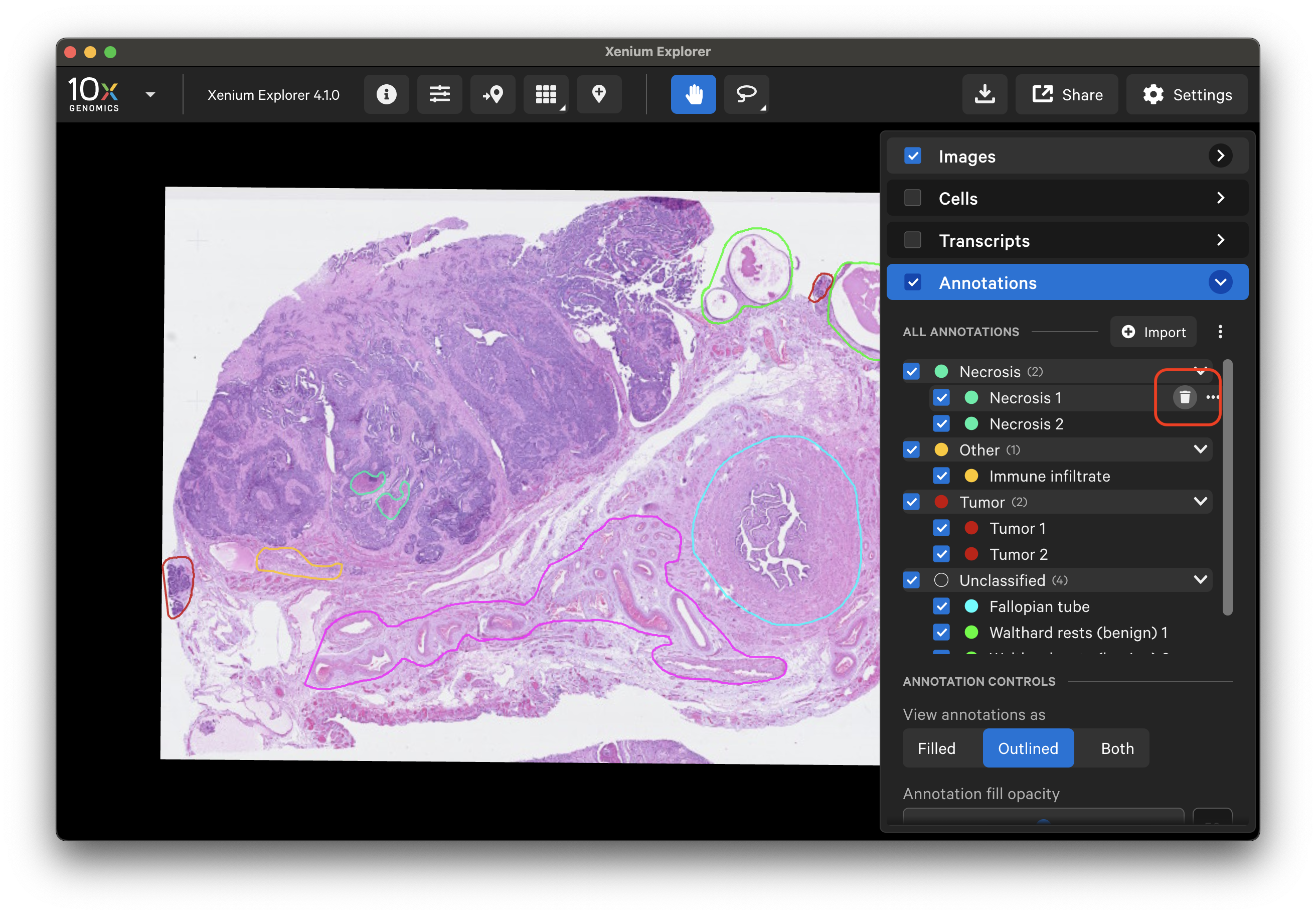

To remove specific annotations, either click the trash can icon or click the three dots and select Remove.

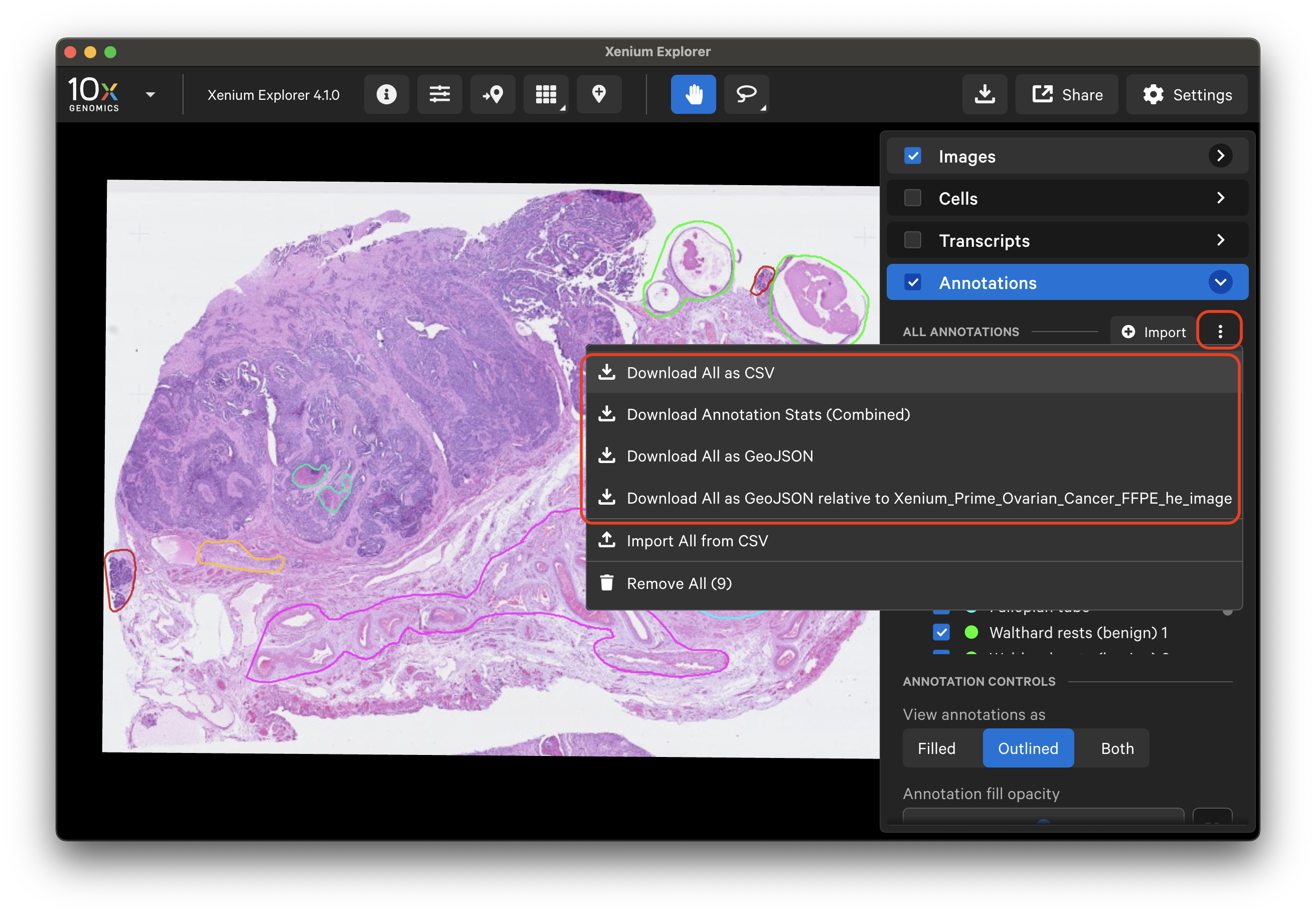

Click the three dots next to the "Import" button to download all coordinates and stats (transcript, cell and cluster, protein) for annotations listed in the layer.

Both the GeoJSON and CSV coordinate files from bulk download can be later re-imported to Xenium Explorer or imported to third-party software for further analysis.

Here is an example of the coordinates CSV file. The header lists the selected ROI and cell ID names:

Copy
#Selection names:,Cell flchpeic-1, Selection 1
#Areas (µm^2): 46.96, 1071.38
Selection,X,Y
Cell flchpeic-1,3895.54,5721.14
Cell flchpeic-1,3894.26,5722.19
[ ... ]
Selection 1,3910.93,5386.55
Selection 1,3914.01,5384.67
[ ... ]

Here is an example of the bulk stats CSV file. There is an empty row between stat tables:

Copy
Annotation Name,Area (µm^2),Cell Count,Transcript Count
Selection 1,445001.41,3994,1223

Annotation Name,Gene,Count,Density (µm^-2)
Selection 1,ABCA10,171,3.84e-4
Selection 1,ABCA8,172,3.87e-4
Selection 1,AC007906.2,880,1.98e-3

Annotation Name,Cell ID,Cluster ID,Total Transcripts,Cell Area
Selection 1,gdjgpmmb-1,Cluster 2,0,203.11
Selection 1,dlphleoo-1,Cluster 12,1,109.28
Selection 1,ejklnffb-1,Cluster 14,0,76.13
[ ... ]

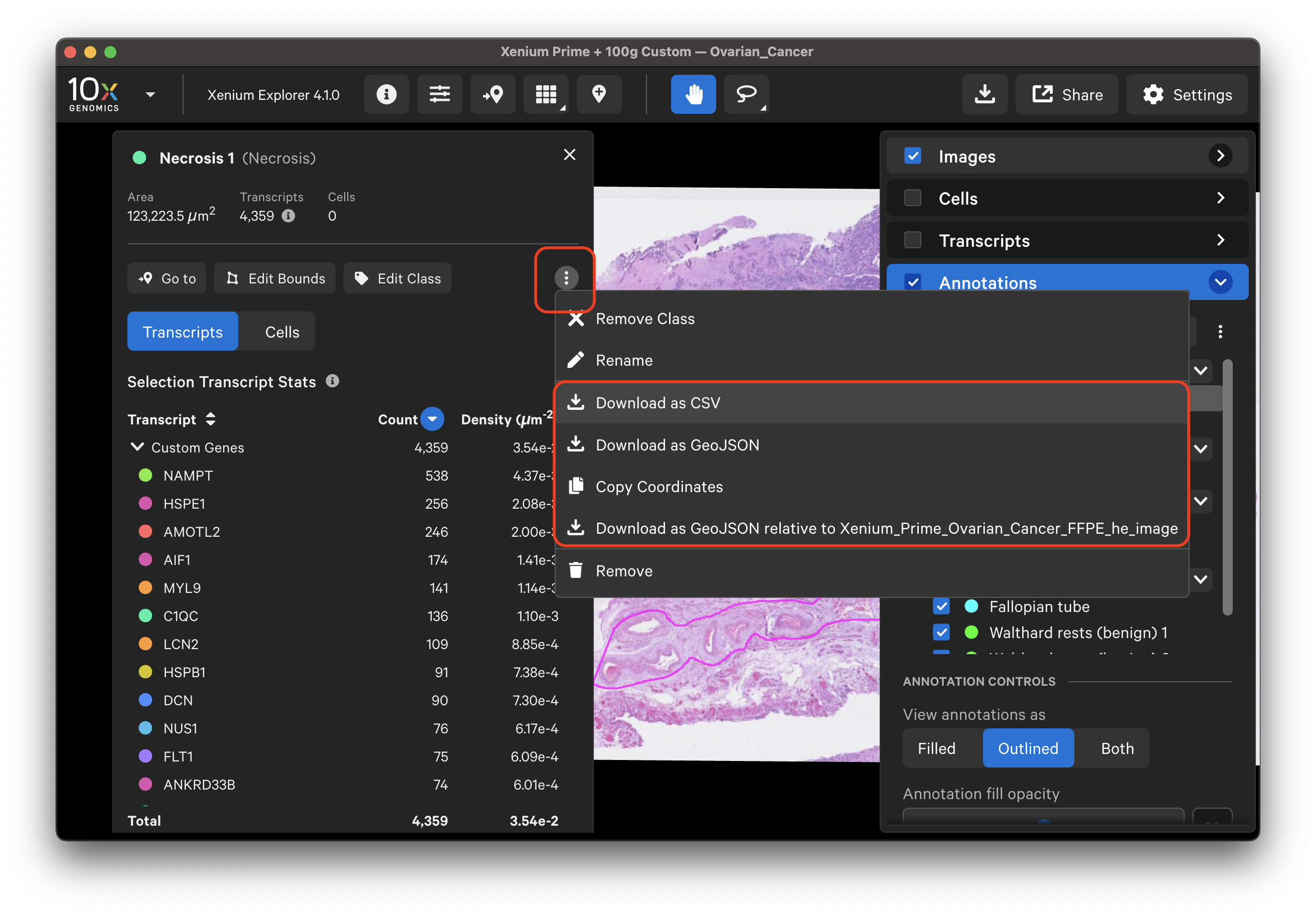

Click the three dots next to a specific annotation to download its coordinates as CSV or GeoJSON (aligned either to Xenium In Situ morphology image or the imported post-Xenium image).

Example CSV format:

Copy
#Selection name: Selection 1
#Area (µm^2): 1071.38
Selection,X,Y
Selection 1,3910.93,5386.55
Selection 1,3914.01,5384.67
Selection 1,3914.11,5384.67
[ ... ]

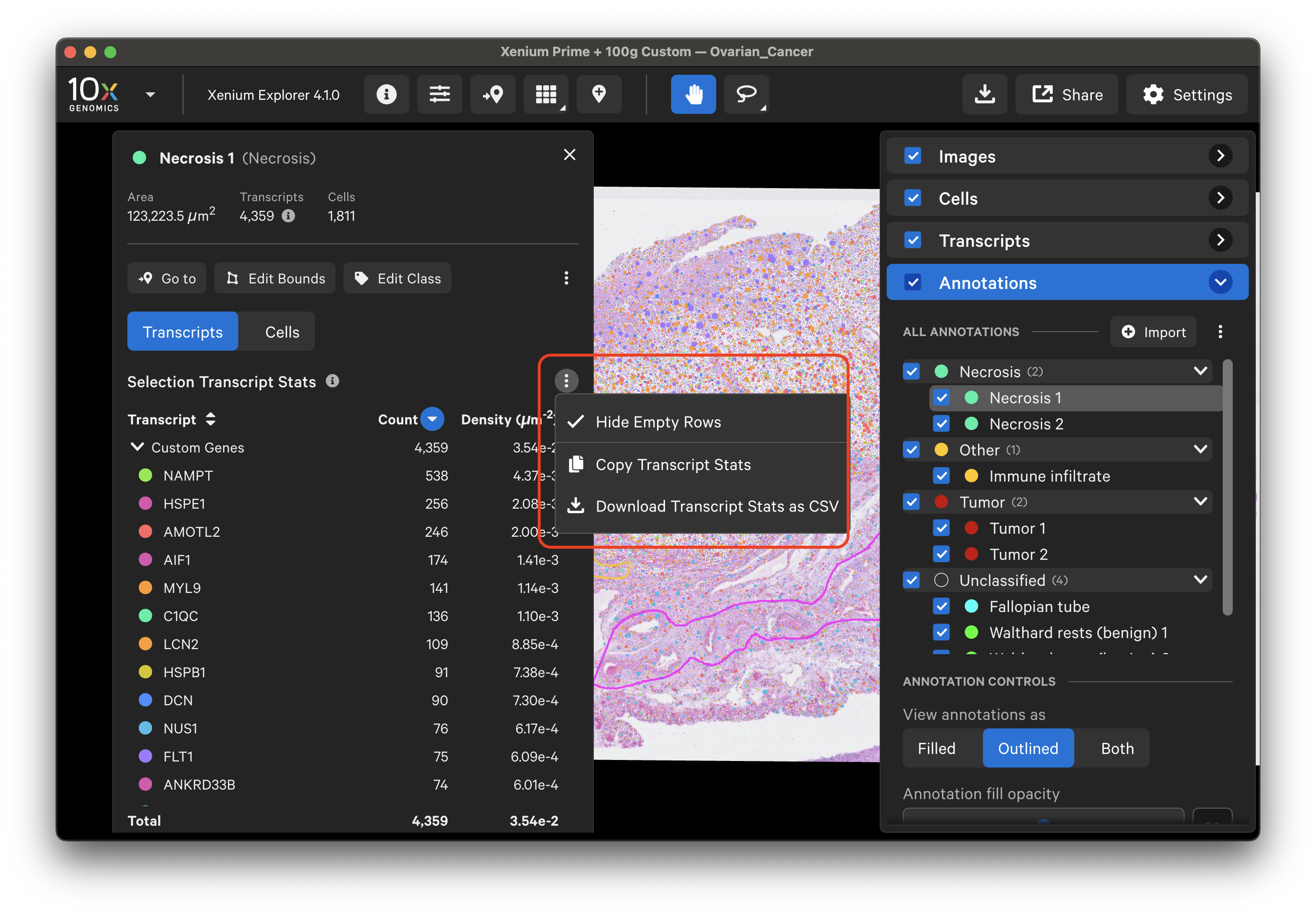

Click the three vertical dots on the Transcripts tab to copy or download a CSV file of transcript stat information. Transcript counts can be sorted in increasing or decreasing order in the Selections window.

Example:

Copy
#Selection name: Selection 1
#Area (µm^2): 1071.38
#Panel genes not included: A2ML1, AAMP, AAR2, AARSD1, ABAT, ABCA1, ABCA3, ABCA4, [ … ], ZYX
Gene,Count,Density (µm^-2)
CD19,0,0
CD22,0,0
CD247,0,0
CD3E,2,0.001866745904760635
CD3G,1,0.0009333729523803175
CD5,1,0.0009333729523803175
CD79A,0,0
CD79B,7,0.006533610666662223
CR2,0,0
FCER2,0,0
FLT3LG,0,0
FOXP3,0,0
IL17A,0,0
MS4A1,0,0
PAX5,1,0.0009333729523803175
POU2AF1,0,0
TNFRSF13C,0,0
[ ... ]

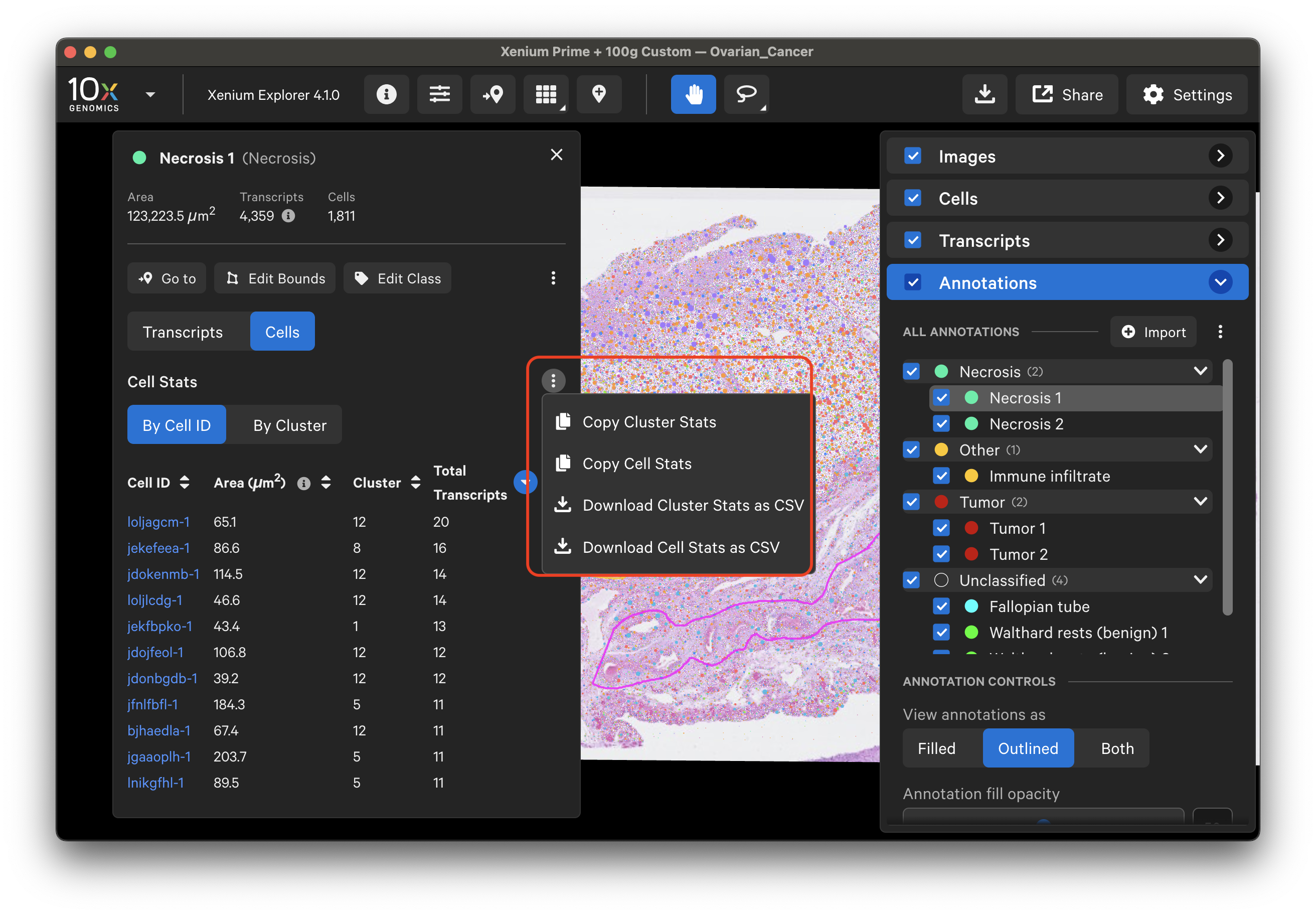

Click the three vertical dots on the Cells tab to copy or download a CSV file of cell stats or cluster stats information. Cell counts by cluster type can be sorted in increasing or decreasing order in the Selections window.

Example of cell stats (cell ID format depends on Xenium Onboard Analysis pipeline version):

Copy
#Selection name: Selection 1
#Area (µm^2): 1071.38
Cell ID,Cluster,Transcripts,Area (µm^2)
ohoaeeaa-1,Endothelial Cell,0,21.30
ohoaeleo-1,B Cell,0,17.55
ohoafieb-1,B Cell,0,20.92
lncfkjff-1,Endothelial Cell,1,31.34
lncflkia-1,Endothelial Cell,0,46.93
lncgfgbg-1,Endothelial Cell,0,51.01
lncgdgdn-1,Endothelial Cell,1,63.33
lncgbamb-1,Classical Monocyte,0,29.46
lncgijld-1,Macrophage,0,31.64
lncfaebi-1,Endothelial Cell,1,48.47
lncfoooi-1,Endothelial Cell,1,48.61
lncgefhj-1,Endothelial Cell,0,48.56
lncfpnek-1,Endothelial Cell,0,37.63
lncfphil-1,Endothelial Cell,1,50.76
ohoaflnk-1,B Cell,0,21.49
lncfnnfb-1,Endothelial Cell,5,28.36
[ ... ]

Example of cluster stats (pre-XOA v1.3):

Copy
#Selection name: Selection 1
#Area (µm^2): 613841.19
#Clusters not included:
Cluster,Count,Area (µm^2)
Cluster 1,21,2502.94
Cluster 2,73,10251.44
[ ... ]

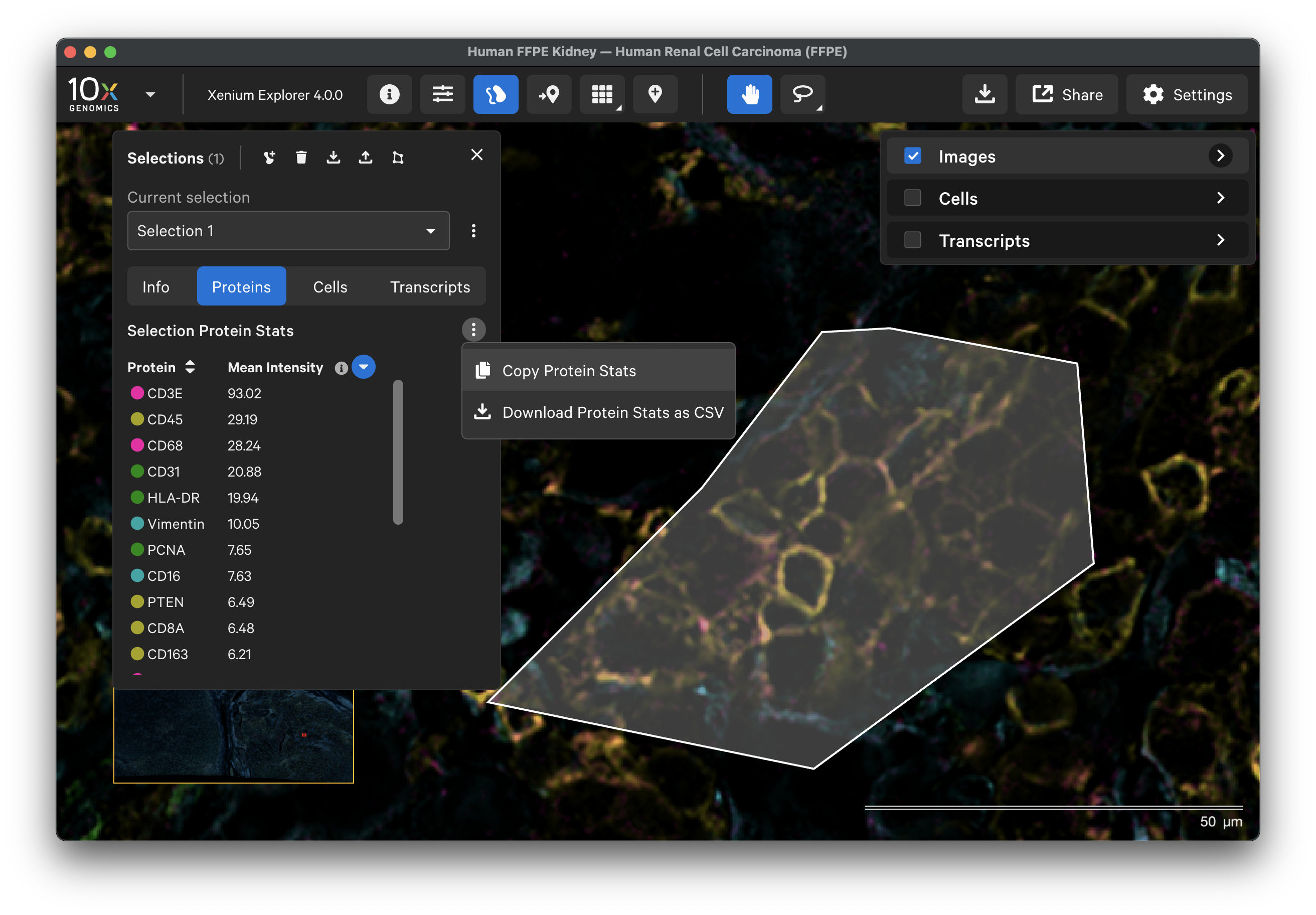

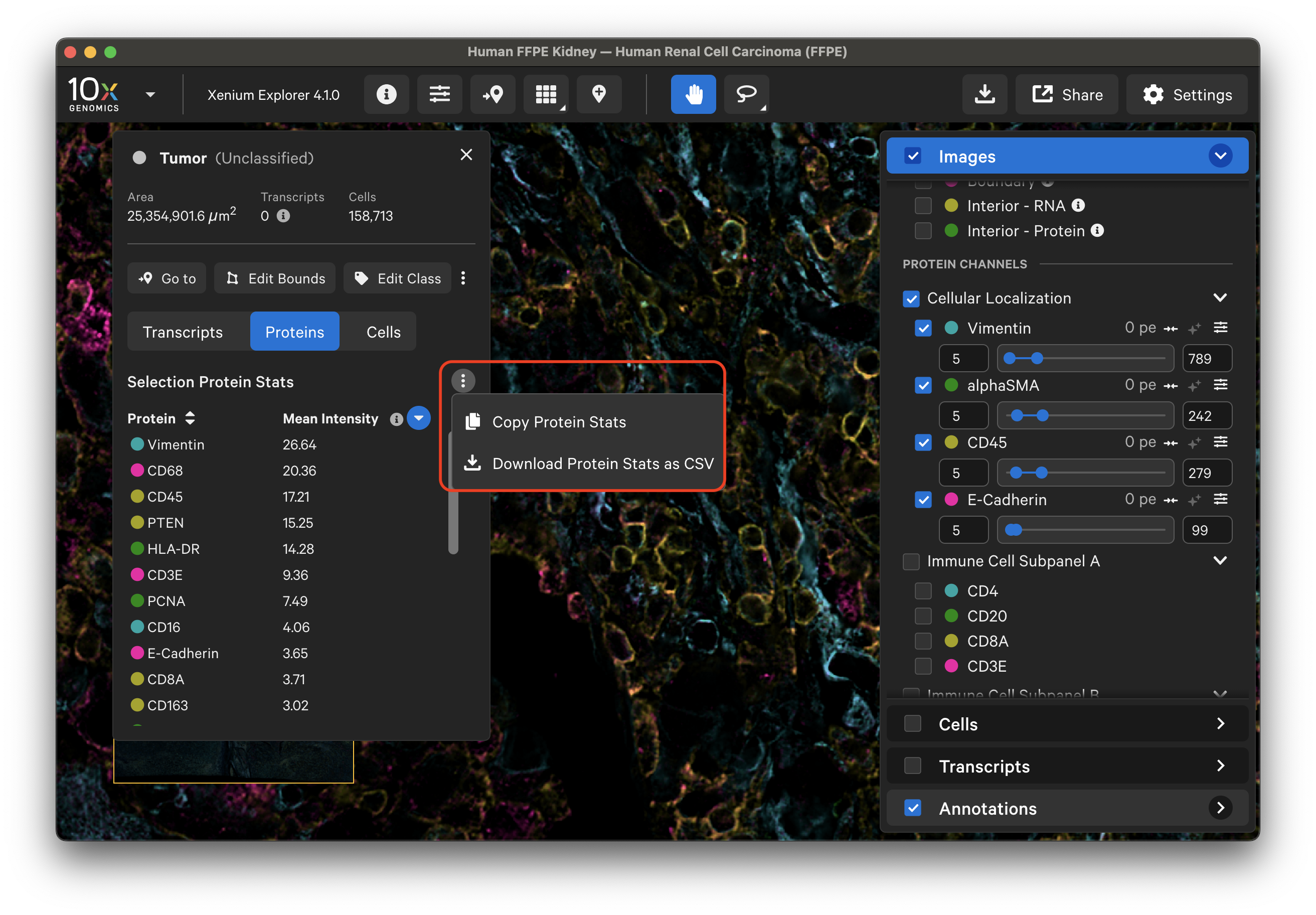

Click the three vertical dots on the Proteins tab to copy or download a CSV file of protein stats. Protein mean intensity and protein marker name can be sorted by clicking the arrows next to the column header name. Mean intensity is derived from the mean fluorescence intensity per protein marker within cell boundaries. Protein signal outside cells is not counted.

Example of protein stats:

Copy
#Selection name: Selection 1
#Area (µm^2): 141.53
Protein Name,Scaled Mean Intensity
CD45RA,123.34
Vimentin,104.70
CD45,75.09
CD20,67.12
alphaSMA,25.62
PTEN,15.02
E-Cadherin,11.75
HLA-DR,8.91
CD3E,5.14
Beta-catenin,5.12
PCNA,3.44
CD4,3.07
CD16,2.91
Ki-67,2.93
CD138,1.49
CD68,1.28
CD11c,1.27
PanCK,1.16
CD31,1.01
CD45RO,0.71
GranzymeB,0.66
CD8A,0.50
CD163,0.50

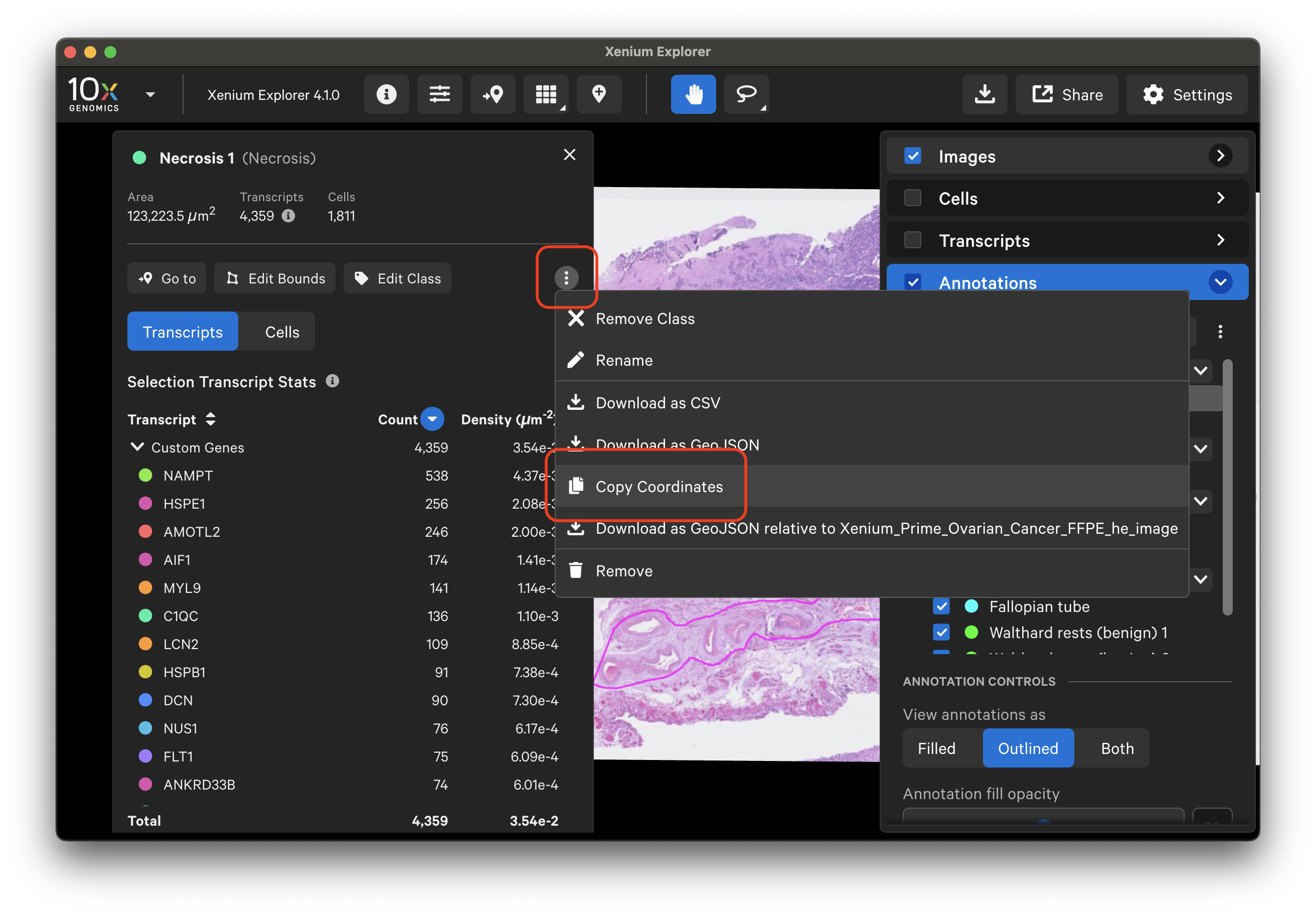

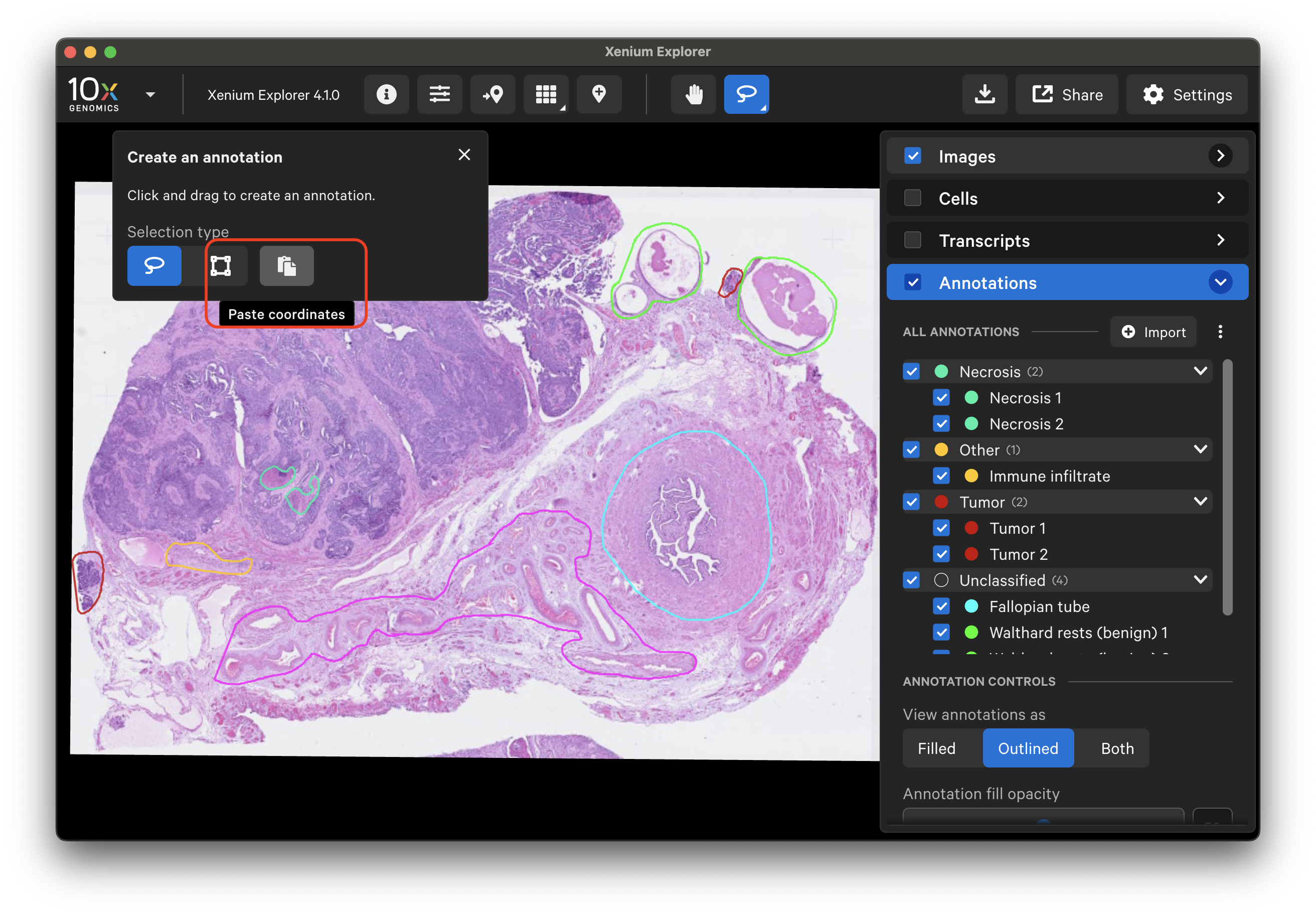

You can also copy the selection lasso shape or cell coordinates from the Selections window and paste with the Lasso > Paste coordinates button. The copied coordinates will not be displayed on the screen, but the Selections window will then re-display information for the selected region.

To test, you can open a new Xenium Explorer window (File > New Window) and paste the selection coordinates. The first selection in this new window now displays the same ROI information that was created above (including Transcripts and Cells tab information for whichever genes and/or cell clusters are checked in their respective menus - if used, import custom gene and/or cell groups to the new window too).
